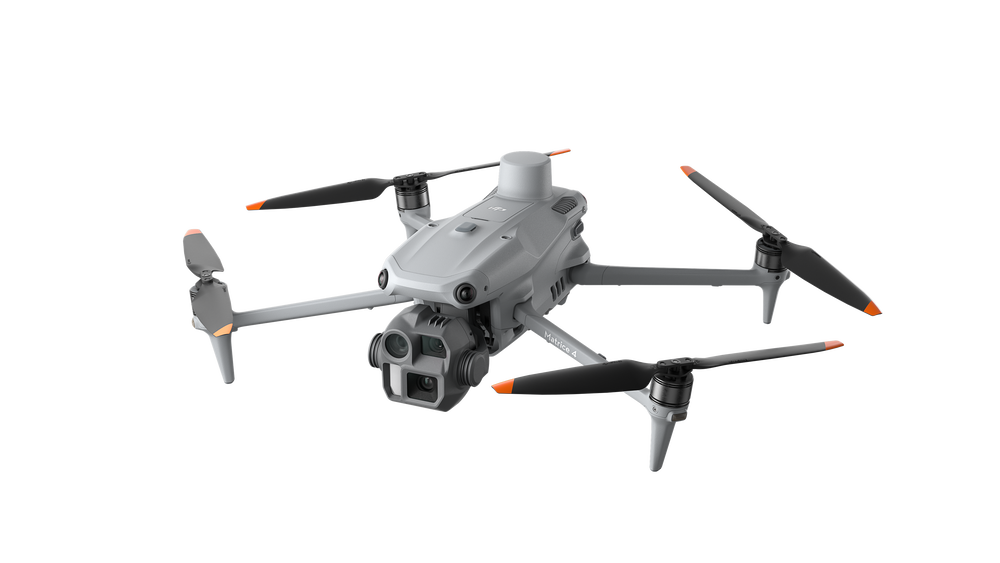

DJI Matrice 4E Enterprise Drone—Professional Survey & Mapping UAV

Next-Generation Intelligent Surveying Technology

The DJI Matrice 4E sets the new standard for professional surveying and mapping operations, combining advanced AI capabilities with precision sensors and rapid capture technology. This cutting-edge enterprise drone delivers uncompromising accuracy for construction monitoring, land surveying, and geospatial mapping across Australia.

Revolutionary Triple-Sensor Camera System

20MP 4/3 CMOS Wide-Angle Camera

• Professional 4/3 Sensor - Large sensor for superior image quality and detail
• Mechanical Shutter - Eliminates rolling shutter distortion for precision mapping
• f/2.8-f/11 Aperture Range - Optimal depth of field control
• 0.5-Second Shooting Interval - Industry-leading rapid capture capability
• 84° Field of View - Comprehensive area coverage per flight

48MP Medium Telephoto Camera (70mm)

• 1/1.3" CMOS Sensor - High-resolution detail capture
• 35° Field of View - Perfect for detailed surveys
• f/2.8 Aperture - Consistent exposure across conditions
• 4K Video Recording - Professional documentation capability

48MP Telephoto Camera (168mm)

• 1/1.5" CMOS Sensor - Ultra-high resolution imaging
• 7x Optical Zoom - Detailed inspection from safe distances
• 15° Field of View - Precision targeting capability
• Super-Resolution Mode - Enhanced detail from up to 250m

Advanced Intelligent Features

Smart 3D Capture Technology

Revolutionary automated 3D modeling workflow that creates low-resolution preview models to optimize flight paths for full-resolution capture, reducing mission time by up to 40%.

5-Directional Oblique Capture

Advanced multi-angle photography system captures comprehensive building and terrain data in a single flight, dramatically improving mapping efficiency over traditional methods.

AI-Powered Detection

Integrated artificial intelligence automatically detects and classifies vehicles, vessels, and personnel in real-time, perfect for site monitoring and security applications.

Laser Rangefinder Precision

Industry-leading 1.8km laser rangefinder provides precise real-time measurements for point marking, line drawing, and area calculations directly from the air.

RTK Precision Mapping Excellence

The Matrice 4E features an integrated RTK module delivering centimetre-level positioning accuracy without external accessories. Compatible with the D-RTK 3 Multifunctional Station for multi-drone operations and enhanced base station functionality.

Advanced Mapping Capabilities

• 3-Directional Ortho Capture - Comprehensive orthophoto generation
• Distortion Correction 2.0 - Factory-calibrated lens correction
• Automatic Survey Reports - Generated by DJI Pilot 2 with photo points and RTK status
• Terrain Map Integration - DJI RC Plus 2 downloads terrain data for obstacle awareness

Superior Flight Performance

• 21 m/s Maximum Speed - Fastest surveying drone in its class
• Extended Flight Time - Professional-grade endurance for large-area mapping
• IP55 Weather Protection - All-weather operational reliability
• -20°C to 50°C Operating Range - Year-round Australian deployment
• 15km O4 Enterprise Transmission - Extended range with 20MB/s bandwidth
• Omnidirectional Obstacle Sensing - Six high-definition fisheye lenses

Professional Surveying Applications

Construction Site Monitoring

Rapid 0.5-second interval shooting and 5-directional oblique capture make the Matrice 4E perfect for construction progress monitoring, volume calculations, and site documentation. Smart 3D Capture automates complex modeling workflows.

Land Surveying & Mapping

RTK precision positioning and mechanical shutter ensure survey-grade accuracy for topographic mapping, boundary surveys, and cadastral applications. Factory-calibrated distortion correction eliminates post-processing complexity.

Mining & Quarry Operations

High-resolution cameras and laser rangefinder enable precise stockpile measurements, pit monitoring, and safety inspections from safe distances. AI detection capabilities monitor equipment and personnel automatically.

Infrastructure Inspection

Triple-sensor payload provides comprehensive inspection capabilities for bridges, roads, and utilities. Super-resolution telephoto mode captures fine details from 250 metres away with enhanced foreground stabilization.

Advanced Safety & Navigation

• GNSS+Vision Fusion Positioning - Reliable navigation in GPS-deprived environments
• Intelligent Path Planning - Automatic terrain-aware route generation
• Return-to-Home - Functions without GNSS signals
• 3D Infrared Bottom Sensing - Enhanced landing accuracy
• Electronic Dehazing - Clear imaging in smog and humidity

DJI RC Plus 2 Enterprise Controller

The advanced 7-inch high-definition controller features terrain map downloading, providing enhanced obstacle awareness for automated missions. Crystal-clear 1080p video transmission with professional reliability.

Enterprise Security Features

• Local Data Mode - Complete internet disconnection for sensitive operations
• Third-Party Security Audits - Verified enterprise-grade protection
• Data Encryption - Military-grade security protocols
• FlightHub 2 Compatible - Professional fleet management
• No Server Sync - Flight logs remain locally stored

Technical Specifications

Why Choose the DJI Matrice 4E?

The Matrice 4E represents the pinnacle of surveying drone technology, combining rapid capture capabilities, AI intelligence, and RTK precision in a compact, field-ready platform. With its revolutionary Smart 3D Capture and 5-directional oblique photography, the M4E delivers unmatched efficiency for professional mapping and construction monitoring applications.

Whether conducting large-scale topographic surveys, monitoring construction progress, or performing detailed infrastructure inspections, the Matrice 4E provides the accuracy, speed, and reliability demanded by Australia's surveying and engineering professionals.
